LS2 ignition coils

Recommended dwell time: 3ms.

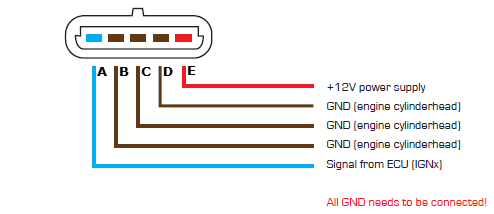

LS2 connections.

Coil and connector.





Mototron ignition coil

Recommended dwell time: 2-7ms.

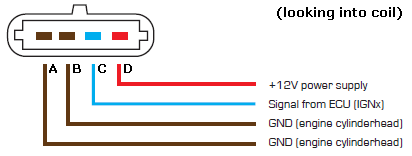

Mototron ignition coil connection.

Coil and connector.





VAG coil (short)

Recommended dwell time: 2.5ms.

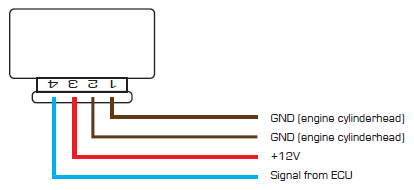

VAG coil (short model) connection.

Coil and connector.





VAG coil (normal/long)

Recommended dwell time: 2.5ms.

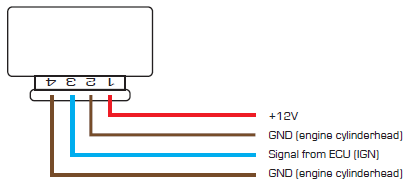

VAG coil (normal and long).

Coil (normal and long) and connector.





Bosch / Huco ignition 4-cyl coil pack

Recommended dwell time: 2.5ms.

Bosch / Huco ignition coil, 4 cylinder WS coil pack.

Coil and connector.







Bosch 6-cyl coil-pack

Recommended dwell time: 2.5ms.

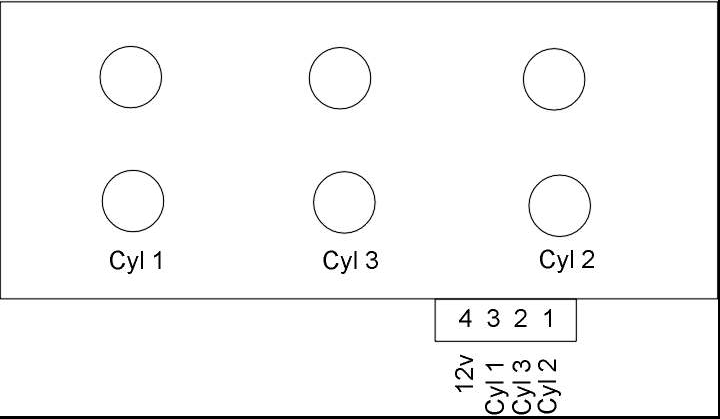

Bosch 6-cylinder coil-pack (0221 503 002).

Coil and connector.
